Cờ lê lực BCSP

Interchangeable single purpose torque wrench applicable for bi-directional tightening (clockwise / counter-clockwise).

Assembly

Preset

Interchangeable Head

Bi-Direction

Click type torque wrench effective for bi-directional use.

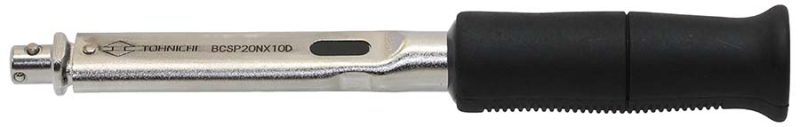

BCSP20N5X10D [Overall length=192.5mm]

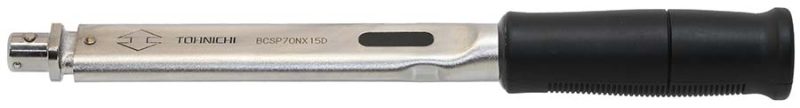

BCSP70N5X15D [L’=286mm]

Application

For assembly and mass-production.

Features

Preset, for bidirectional tightening
The set torque cannot be changed without using a special tool (sold separately), preventing the operator from changing torque by mistake.
A wide selection of interchangeable heads, letting you choose the right one for the task and reducing overall purchasing costs.
A clear “click” sound signals tightening completion upon reaching the set torque.
Only the BCSP400NX22D model has a metal handle with a knurled finish on the grip and the other models have a resin grip.
Tohnichi’s interchangeable head torque wrenches can be used with our interchange head lineup which offers the best selection in the world, making these wrenches ideal for your work.

Specifications

MODEL			BCSP10N×8D	BCSP20N×10D	BCSP40N×12D	BCSP70N×12D	BCSP70N×15D	BCSP120N×15D	BCSP220N×19D	BCSP300N×22D	BCSP400N×22D
S.I. RANGE [N･m]	MIN.～MAX.		5～10	10～20	20～40	35～70		60～120	110～220	150～300	200～420
METRIC RANGE	MIN.～MAX.		kgf･cm	100～200	200～400	350～700		600～1200	1100～2200	kgf･m	20～42
[kgf･cm / kgf･m]			50～100							15～30
AMERICAN RANGE	MIN.～MAX.		50～100	100～200	200～350	350～600		600～1100	1000～1900	1400～2600	1800～3600
[lbf･in]
MAX. HAND FORCE[N]			57	108	192	250	241	343	494	455	421
DIMENSION	EFFECTIVE LENGTH	Ｌ	176	186	208	280	291	349.5	445	660	950
[mm]	OVERALL LENGTH	Ｌ’	189.5	192.5	214	286	290	348.5	427	625	918
	HEAD	d3	8	10	12		15		19	22
	BODY	ｍ	19		25.5	28			35		38.6
		ｎ	9.2		11.2	12.2			15		16.1
		ｄ	15		20	21.7			27.2		30
		Ｄ	29		34				38		40
WEIGHT[kg]			0.2		0.23	0.57

Dimensions

Expand dimensions

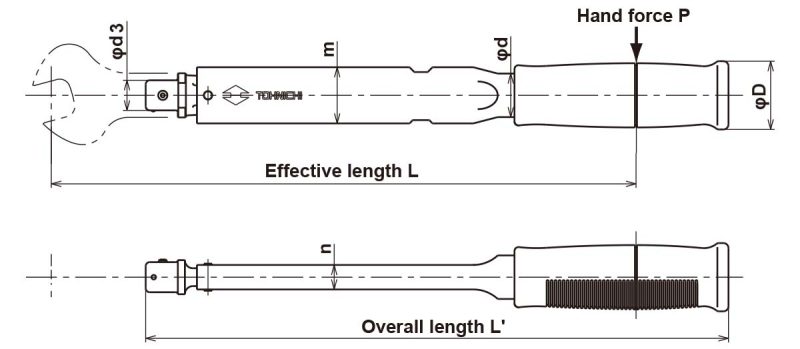

BCSP10NX8D～BCSP300NX22D

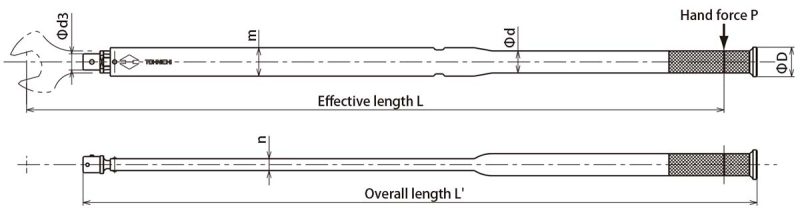

BCSP400NX22D
